Anti-vibration rubberCATALOGUE |
 |
|
|
|
|
|

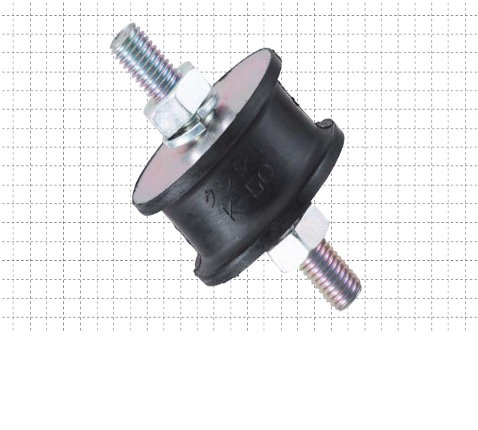

 ⚫Performance/Features
１：Simple structure and low cost
It has a simple structure and is easy to install.
２：Small installation space
Since it is compact and has a relatively large spring constant, it can support a large load
３：Various support methods are possible
Depending on the mounting direction, it can be used in the compression direction, shear direction, and tilt direction, and has a wide range of applications.
４：Customized products can be easily accommodated
It is possible to change the hardness and material of the rubber if the quantity is large enough.
⚫Main use
Pump・Blower・Engine・Generator・Electric motor・Compressor
Click here fore more details |
|
|
|
|
|

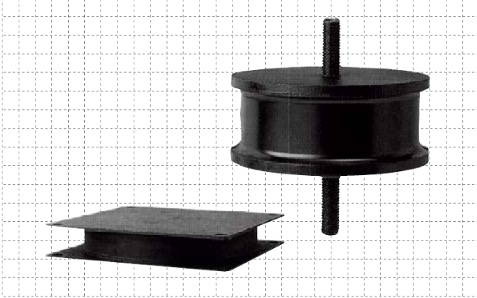

 ⚫Performance/Features
１：One class higher supporting load capacity
A maximum load of 115kN is possible.
２：Greater flexibility in design
Further expanded when used in combination with Anti-vibration rubber.
⚫Main use
Large equipment・Architectural frame・Other large load support parts
Click here fore more details |
|
|
|
|
|

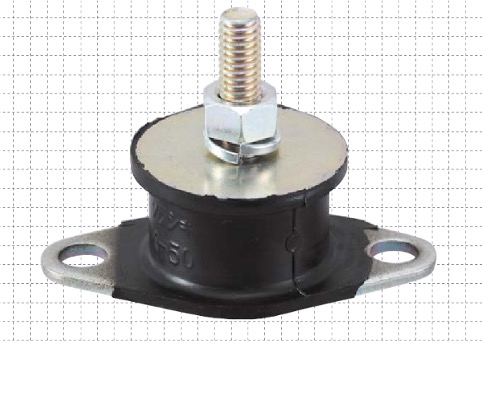

 ⚫Performance/Features
１：Simple structure and low cost
It has a simple structure and is easy to install.
２： Installation space is small
Since it is compact and has a relatively large spring constant, it can support a large load.
３：Various support methods are possible
Depending on the mounting direction, it can be used in the compression direction, shear direction, and tilt direction, and has a wide range of applications.
４：Easy to deal with special orders
It is possible to change the hardness and material of the rubber if the quantity is large enough.
⚫Main use
Pump・Blower・Engine・Generator・Electric motor・Compressor
Click here fore more details |
|
|
|
|
|

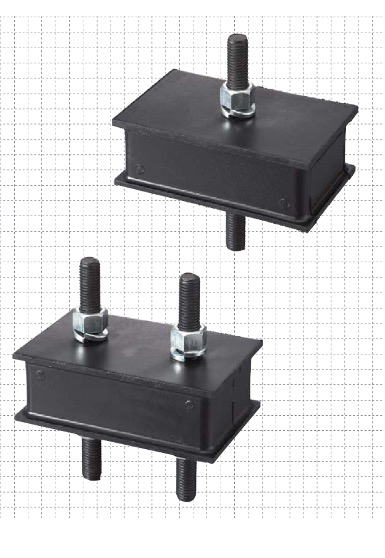

 ⚫Performance/Features
１：Suitable for building materials
It is suitable for anti-vibration applications such as studios, anechoic chambers, and pipe supports.
２：Widely used for large loads
With a maximum supporting load of 24,500 N per piece, it can be used for large loads, expanding its range of applications.
３：Suitable for preventing high frequency vibration
Due to its large spring constant, it can be used in large machines and is suitable for preventing the transmission of high-frequency vibrations.
４：Wider applicability depending on mounting direction
◎It can be used in both shearing and tilting directions, and can also be used effectively for low-frequency vibration.
◎When used in two stages, the natural frequency can be set as low as 1/√2 of the first stage.
◎By using the through-hole type, you can consider the mounting method, such as post-installation in places where there is no space.
５：No seismic measures required
The through-hole type can be easily attached to bolts through the central hole and can be used as an anti-seismic measure.
⚫Main use
Piping support・Elevator winding machine・Multi-story parking lot・Engine・Machine Tools・Architectural frame
Click here fore more details |
|
|
|
|
|

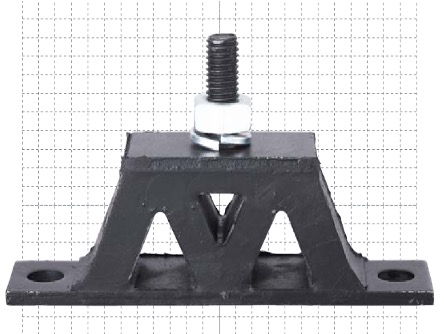

 ⚫Performance/Features
１：Small vertical spring constant
The spring constant in the vertical direction is smaller than that of Anti-vibration rubber, and the stability in the lateral direction is good, so it is suitable for machines that generate large amplitude at low speed rotation.
２：Suitable for anti-vibration at low rotation speed
３：Due to the narrow width, it can be installed in places where one direction is restricted.
⚫Main use
Vibrating screen・Vibration conveyor・Vibrating sieve・Instrument panel・Refrigerator・Compressor
Click here fore more details |
|
|
|
|
|
|

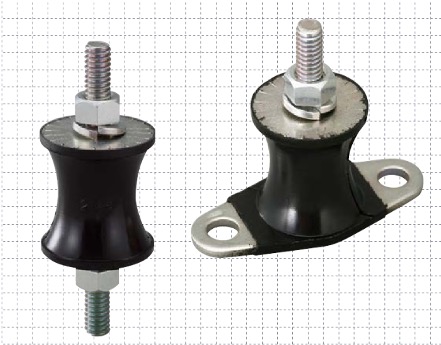

Anti-vibration rubber KXA/KXB |
|
|
|
 ⚫Performance/Features
１：Simple structure and easy installation
２：Metal fittings are treated with anti-rotation serrations to prevent twisting during installation
３：Optimal anti-vibration support is possible even for light-load equipment
⚫Main use
・Vibration isolation for control panels and controllers
・Vibration isolation for small pumps, fans, motors and compressors
・In addition, anti-vibration and anti-vibration of light load equipment, etc.
Click here fore more details |
|
|
|
|
|

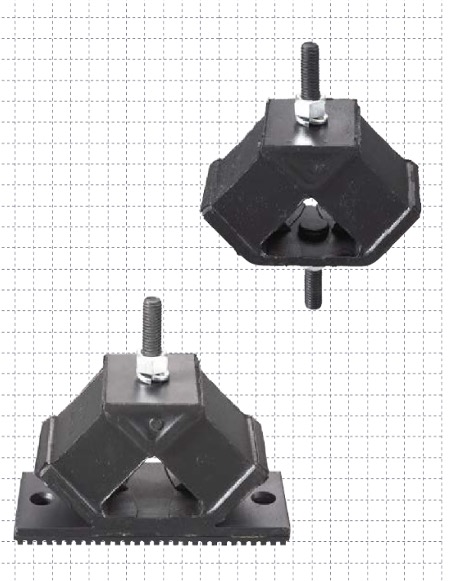

 ⚫Performance/Features
１：Suitable for machines with large excitation force
It is designed to be suitable for anti-vibration support of a complex vibration system by using rubber in an inclined arrangement.
２：High stiffness in lateral direction (Kx)
Compared to Anti-vibration rubber, it has greater lateral rigidity and better stability, making it suitable for supporting rotating machinery with lateral excitation force.
Click here fore more details |
|
|
|
|
|
|

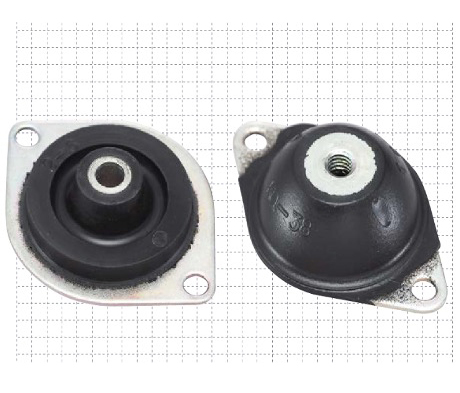

Anti-vibration rubber KP/KQ |
|
|
|
 ⚫Performance/Features
１：Ideal for anti-vibration of lightweight machines
It has a smaller spring constant than other anti-vibration rubbers and is suitable for vibration isolation of lightweight equipment.
In addition, it is effective against continuous vibration and sudden impact.
２：Excellent horizontal stability
Excellent horizontal stability due to appropriate rigidity ratio.
３：Uses chloroprene rubber
The rubber material is chloroprene rubber, which has excellent flame resistance and ozone resistance.
⚫Main use
Office supply・Air conditioner・Electronics・Small generator・Other lightweight equipment
Click here fore more details |
|
|
