Stopper frame, pin |
 |
|
|
|
|
|
|

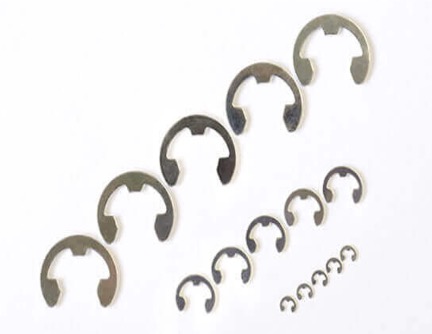

E-Type Retaining Rings / JIS / Stainless Steel |
|
|
|
 Features
These products are used for retainer parts used by inserting on to a groove finished shaft/axis. Customers can choice standards corresponding to the size or the outer diameter of the shaft. (In some sizes, we have stack products for auto-setting usage.)
【Kinds of the standards】JIS, TAIYO Standard A, TAIYO Standard B
Size conforms to the JIS standard. Customers can choice materials depending on the affinity with the applied shaft and the circumstance in use. Although stainless steel has anti corrosion effect the thrust load is approximately 90% compared to steel.
【Materials】SUS304、SUS316
Click here fore more details |
|
|
|
|
|
|

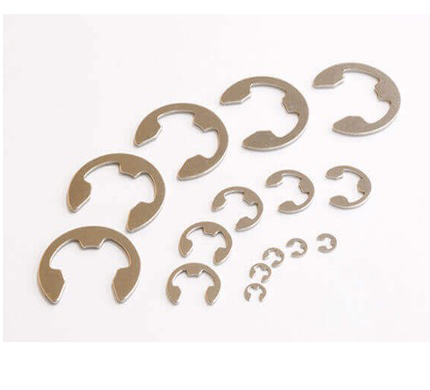

E-Type Retaining Rings / JIS / Spring Steel |
|
|
|
 Features
These products are used for retainer parts, being inserted on to a groove finished shaft/axis. Customers can select the standards corresponding to the shaft size or the outer diameter shaft.
【Kinds of the standards】JIS, TAIYO Standard A, TAIYO Standard B
Size system conforms to the JIS standard. Customers can choice surface treatment corresponding to the affinity with the applied shaft as well as the circumstance in use.
【Materials】Spring steel.
Click here fore more details |
|
|
|
|
|
|

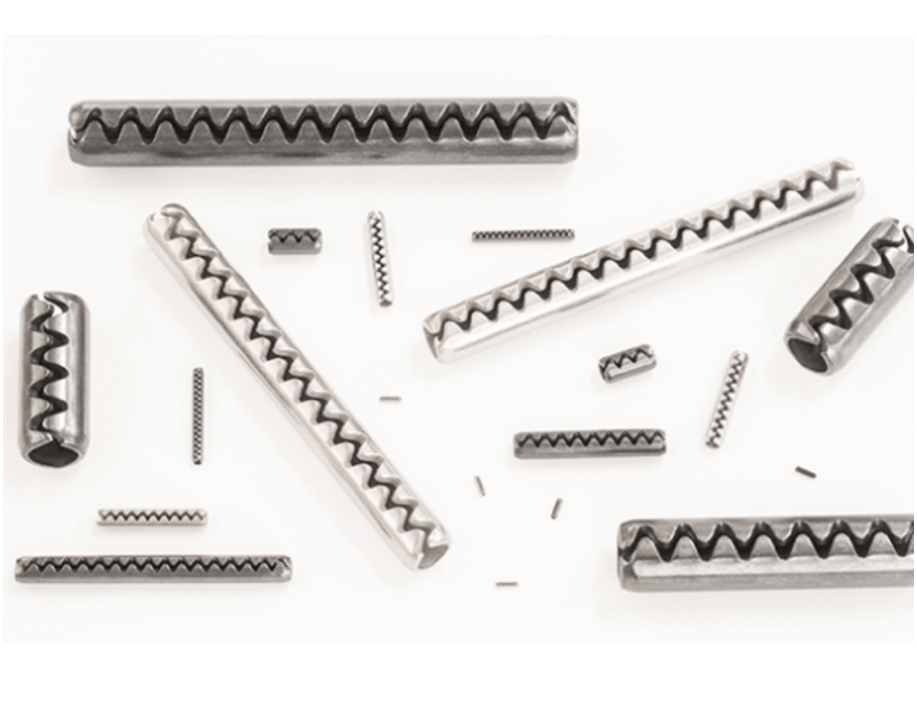

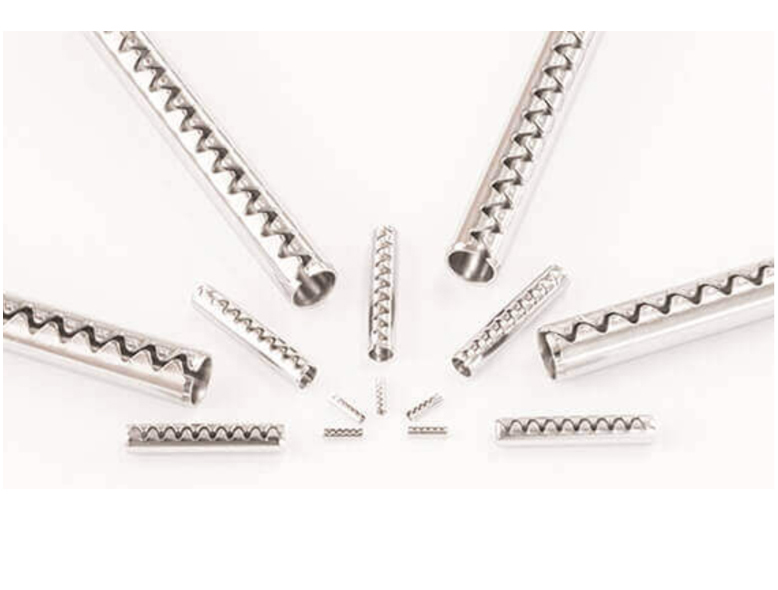

Toothed Slotted Spring Pins for General Purposes |
|
|
|
 Features
These products are made from plate materials which have spring properties processed with rolling up technique and the joint portion will have a slot. These are used to retain radial spring force and used as parts for pins or hinges. In the case of receiving dynamic load, specifying the insert direction is recommended.
→As for the information about technology, please refer to the Technical information.
【Materials】SUS420J2, spring steel.
Click here fore more details |
|
|
|
|
|
|
Toothed Slotted Spring Pins for Light Duty Use |
|
|
|
 Features
These products are made from plate materials which have spring properties processed with rolling up technique and the joint portion will have a slot. These are used to retain radial spring force and used as parts for pins or hinges. In the case of receiving dynamic load, specifying the insert direction is recommended.
→As for the information about technology, please refer to the Technical information.
【Materials】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

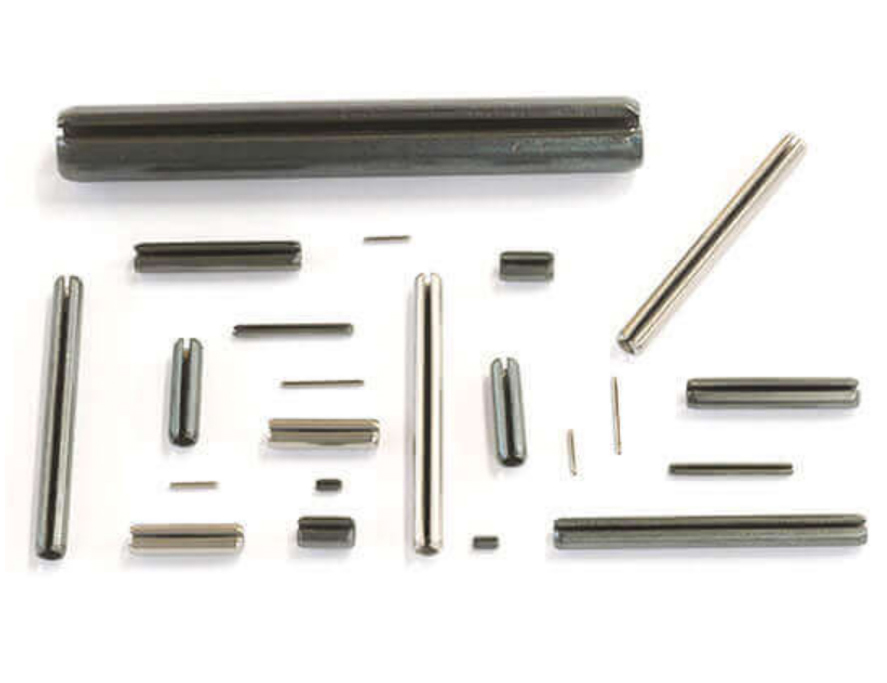

Straight Slotted Spring Pins for General Purposes |
|
|
|
 Features
These products are made from plate materials which have spring properties processed with rolling up technique and the joint portion will have a slot. These are used to retain radial spring force and used as parts for pins or hinges. In the case of receiving dynamic load, specifying the insert direction is recommended.
→As for the information about technology, please refer to the Technical information.
【Materials】SUS420J2、spring steel
Click here fore more details |
|
|
|
|
|
|

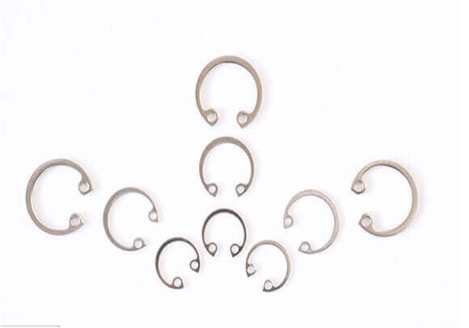

Small Diameter C-Type Retaining Rings for Holes |
|
|
|
 Features
These products are used for retainer parts, being set to a groove on a bore.(Special jigs are needed.)
Corresponding from 6.4 to 9.5 mm bore diameter.
【Materials】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

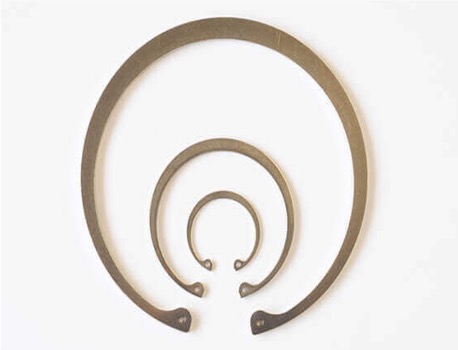

C-Type Retaining Rings for Holes |
|
|
|
 Features
These products are used for retainer parts, being set to a groove on a bore.(Special jigs are needed.)
Corresponds to 10~200 mm in bore diameter.
【Materials】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

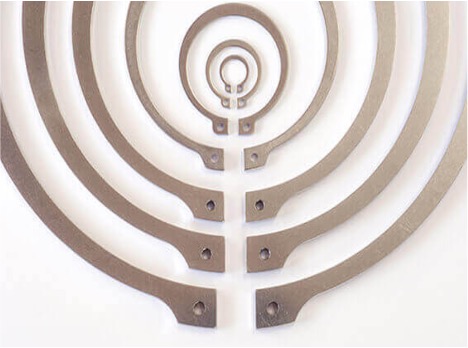

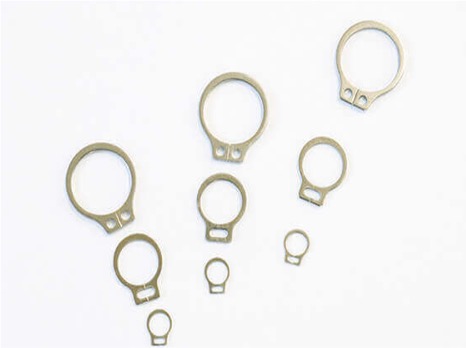

C-Type Retaining Rings for Shafts |
|
|
|
 Features
These products are used for retainer parts, being set for groove finished shafts.
(Special jigs are needed.)
Corresponds to 10 to 200 mm in shaft diameter.
【Materials】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

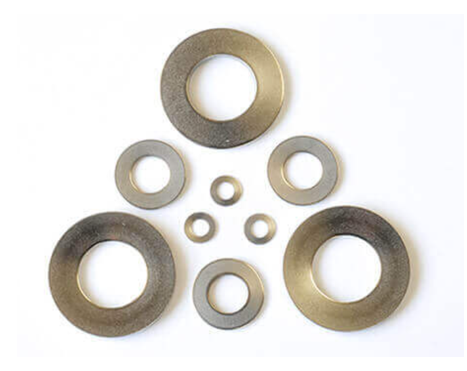

Disc Springs for Heavy Duty |
|
|
|
 Features
These are used to absorb vibrations and to prevent loosening. They are effective especially in the case of the narrow space and high load. They also can be used by stacking in a single row or parallel rows depending on required load or location. We also have the light duty products.
→ As for the information about technology, please refer to the Technical information.
【Materials】SUS304-CSP、Spring steel.
Click here fore more details |
|
|
|
|
|
|
Small Diameter C-Type Retaining Rings for Shafts |
|
|
|
 Features
These products are used for retainer parts, being set to a groove finished shafts.
(Special jigs are needed.)
Corresponds from 3.2 to 9 mm in shaft diameter.
【Material】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

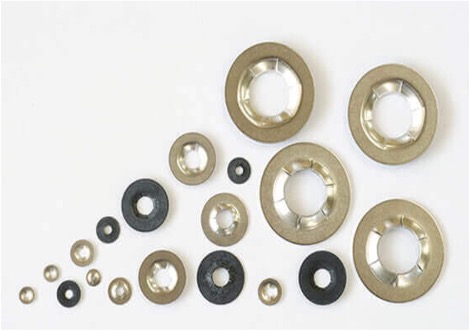

 Features
By inserting this on to a non-grooved shaft from a certain direction, the inside claw grasps the shaft surface and fixes the parts at the designated position. (Special jigs are needed.)
【Materials】SUS304-CSP、Spring steel.
Click here fore more details |
|
|
|
|
|
|

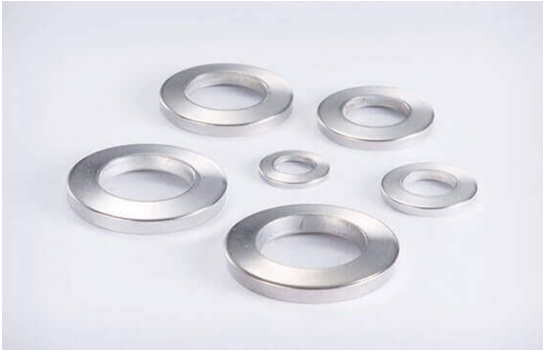

Disk Spring Washers for Heavy Duty (1H) Light Duty (1L) |
|
|
|
 Features
Disk spring washers for bolts.
Conforms to JIS B 1251, Type 1.
Stainless steel-made; excellent corrosion and heat resistance;low permanent distortion.
Optimal for building hardware, construction metal fittings, chemical plants, food machinery, among, others.
【Material】SUS304-CSP
Click here fore more details |
|
|
|
|
|
|

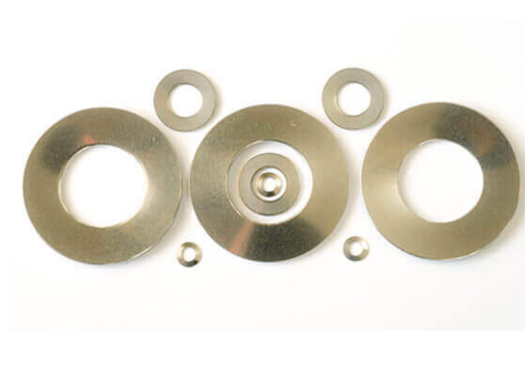

Disc Springs for Light Duty |
|
|
|
 Features
These are used to absorb vibrations and to prevent loosening. They are effective especially in the case of the narrow space and high load. They also can be used by stacking in a single row or parallel rows depending on required load or a location. We also have the heavy duty products.
→ As for the information about technology, please refer to the Technical information.
They are used for relatively light load.
【Materials】SUS304-CSP、Spring steel.
Click here fore more details |
|
|
|
|
|
|

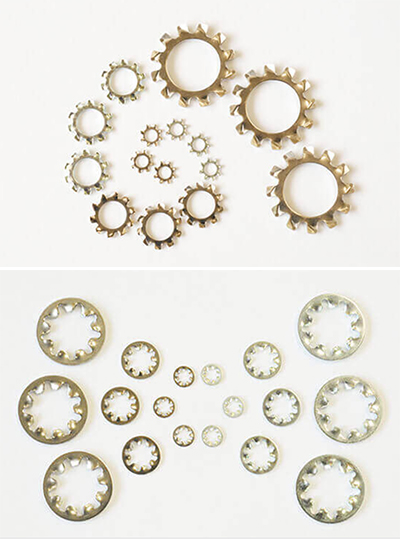

Toothed Lock Washers (External, Internal) |
|
|
|
 Features
Toothed lock washers have raised teeth on the inner or outer side. Combining with plain washers and tightening up prevents loosening. Customers can choice the shapes and materials according to the bolt size, bolt head or shape of the applied parts.
Products having the teeth on the external side.
【Materials】SUS304-CSP、Spring steel.
Click here fore more details |
|
|
|
|
|

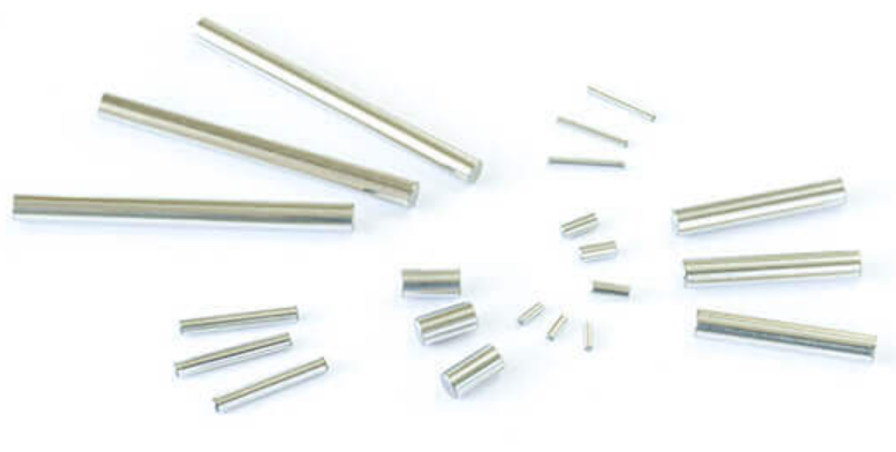

 Features
For the parallel pins, after cutting work, center-less grinding is done for straightness, roundness and outer diameter accuracy. Stainless steel makes it suitable for the field of home electronics, medicine and food. The product is used as rotational axis or hinge axis.
【Materials】SUS301 or 201、SUS304
Click here fore more details |
|
|
